Positive fixed output voltage regulator, 2.5V, with 2% output voltage accuracy. Features a 250mV dropout voltage and a maximum output current of 1A. Operates with a maximum input voltage of 6V and a minimum input voltage of 2.3V. Housed in a 3-pin SOT-223 surface-mount package, measuring 6.7mm x 3.7mm x 1.7mm. RoHS compliant with an operating temperature range of -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826S-2502E/DB technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
250mV
Height
1.7mm
Input Bias Current
120uA
Length
6.7mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
2%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826S-2502E/DB Datasheet
Download the complete datasheet for Microchip MCP1826S-2502E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

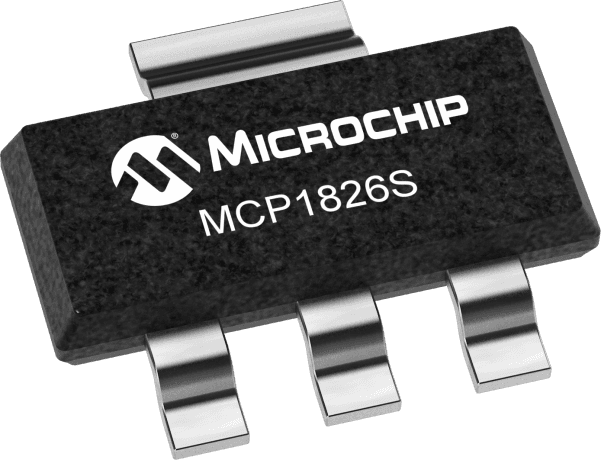

Product Images
