3.3V positive fixed output linear voltage regulator with 1A maximum output current. Features a low 250mV dropout voltage and 2% output voltage accuracy. Operates from a 2.3V to 6V input voltage range with a maximum operating temperature of 125°C. Packaged in a SOT-223 surface mount case.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826T-3302E/DC technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
250mV
Height
1.6mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826T-3302E/DC Datasheet
Download the complete datasheet for Microchip MCP1826T-3302E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

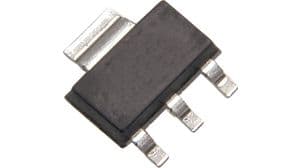

Product Images
