5V fixed positive LDO regulator with 1.5A output current and 330mV dropout voltage. Features 2% accuracy, 60dB PSRR, and a quiescent current of 220uA. Operates from 2.3V to 6V input voltage and is available in a lead-free, surface-mount TO-263-6 package. Maximum operating temperature is 125°C.
PackageTO-263-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827T-5002E/ET technical specifications.
General
Accuracy
2%
Package/Case
TO-263-6
Dropout Voltage
330mV
Input Bias Current
120uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827T-5002E/ET Datasheet
Download the complete datasheet for Microchip MCP1827T-5002E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

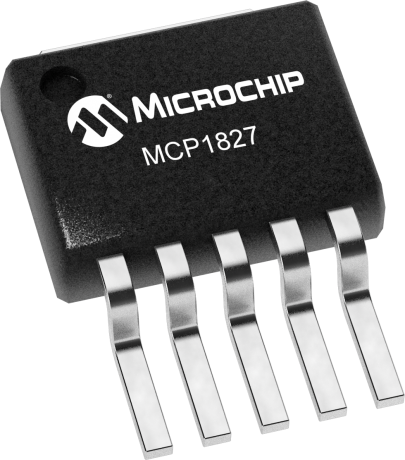

Product Images
