Frequency3.4MHz
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP23009-E/P technical specifications.
General
Package/Case
PDIP
Frequency
3.4MHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
3.4MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Through Hole
Number of Channels
1
Number of I/Os
8
Output Current
25mA
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Supply Voltage-Nom
5.5V
Termination
Through Hole
Weight
0.044801oz
Compliance
RoHS
Compliant
Datasheet
Microchip MCP23009-E/P Datasheet
Download the complete datasheet for Microchip MCP23009-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

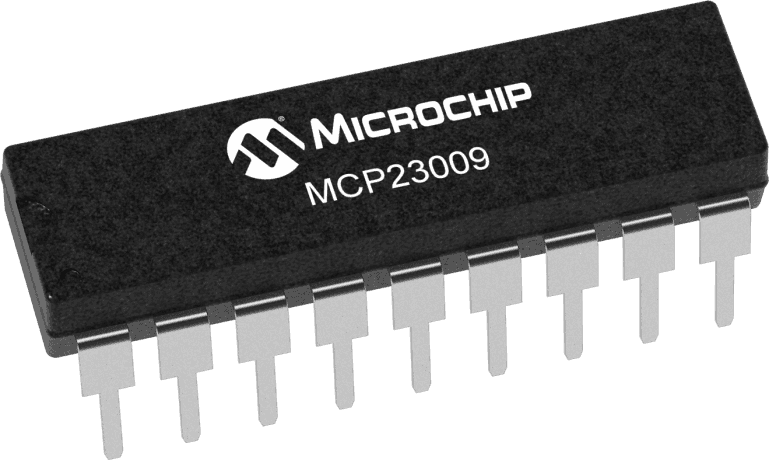

Product Images
