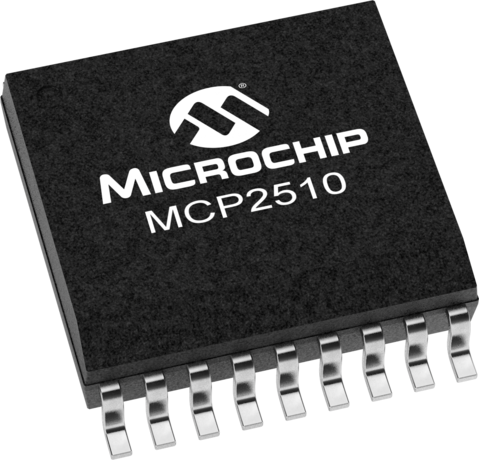

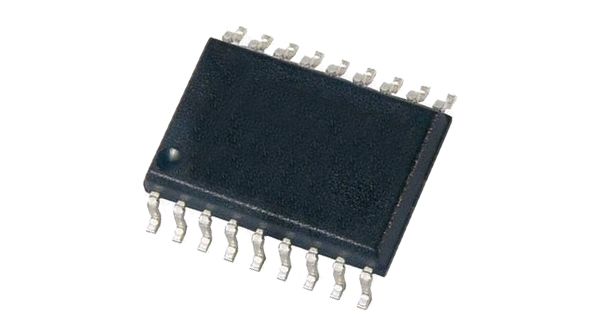

CAN controller IC supporting 5Mbps data rates and 5MHz frequency. Features SPI and Serial interfaces, operating from 3V to 5.5V with a nominal 5V supply. Includes 2 receive buffers and 3 transmit buffers, with 1 receiver and 1 transceiver. Packaged in a 18-pin SOIC for surface mounting, this RoHS compliant component operates between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2510-I/SO datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2510-I/SO technical specifications.
| Package/Case | SOIC |
| Data Rate | 5Mbps |
| Frequency | 5MHz |
| Height | 2.31mm |
| Interface | SPI, Serial, CAN |
| Lead Free | Lead Free |
| Length | 11.53mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Drivers | 1 |
| Number of I/Os | 16 |
| Number of Receive Buffers | 2 |
| Number of Receivers | 1 |
| Number of Timers/Counters | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Supply Voltage-Nom | 5.5V |
| Width | 7.49mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP2510-I/SO to view detailed technical specifications.
