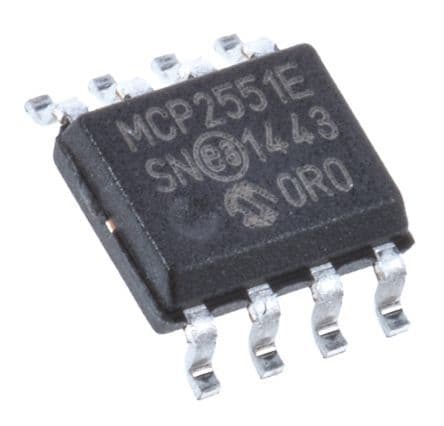

High-speed CAN transceiver for robust automotive and industrial communication. Features a 1Mbps data rate and operates from a 4.5V to 5.5V supply voltage. This surface-mount SOIC package offers a single channel with one driver and one receiver, supporting serial CAN interface. Designed for reliability with a wide operating temperature range of -40°C to 125°C and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2551-E/SN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2551-E/SN technical specifications.
| Package/Case | SOIC |
| Data Rate | 1Mbps |
| Height | 0.059inch |
| Interface | Serial, CAN |
| Lead Free | Lead Free |
| Length | 0.192inch |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 75mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Functions | 1 |
| Number of Receive Buffers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 8.5V/µs |
| Supply Current | 75mA |
| Supply Voltage-Nom | 5.5V |
| Width | 0.154inch |
| RoHS | Compliant |
