10-bit, 1-channel Analog-to-Digital Converter (ADC) with a 200 kS/s sampling rate. Features single-ended input, SPI serial interface, and 1 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL). Operates from a 2.7V to 5.5V supply, with a maximum operating temperature of 85°C. Packaged in a lead-free, RoHS-compliant SOIC surface-mount case.
PackageSOIC
Current400uA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3001-I/SN technical specifications.
General
Package/Case
SOIC
Conversion Rate
200KS/s
Differential Nonlinearity
1LSB
Height
1.25mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
100
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
61dB
Supply Current
400uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3001-I/SN Datasheet
Download the complete datasheet for Microchip MCP3001-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

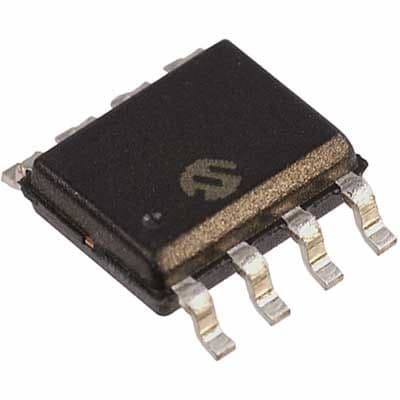

Product Images
