10-bit, 8-channel analog-to-digital converter (ADC) with a 200 kS/s sampling rate. Features 1LSB integral and differential nonlinearity, unipolar input, and SPI serial interface. Operates from 2.7V to 5.5V with a typical 5V supply and 425uA supply current. Packaged in a 16-pin PDIP for through-hole mounting, this RoHS compliant component is suitable for automotive applications.
PackagePDIP
Current425uA
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3008-I/P technical specifications.
General
| Package/Case | PDIP |
| Conversion Rate | 200KS/s |
| Differential Nonlinearity | 1LSB |
| Height | 3.3mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Lead Free |
| Length | 19.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Bits | 10 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 200KS/s |
| Signal to Noise Ratio (SNR) | 200dB |
| Supply Current | 425uA |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP3008-I/P Datasheet
Download the complete datasheet for Microchip MCP3008-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

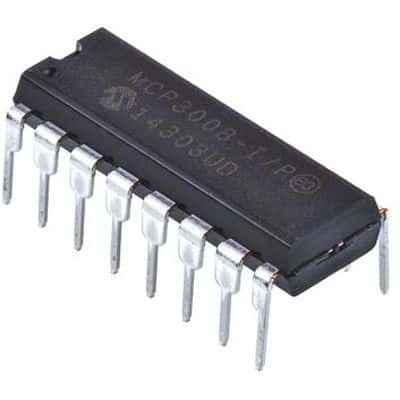

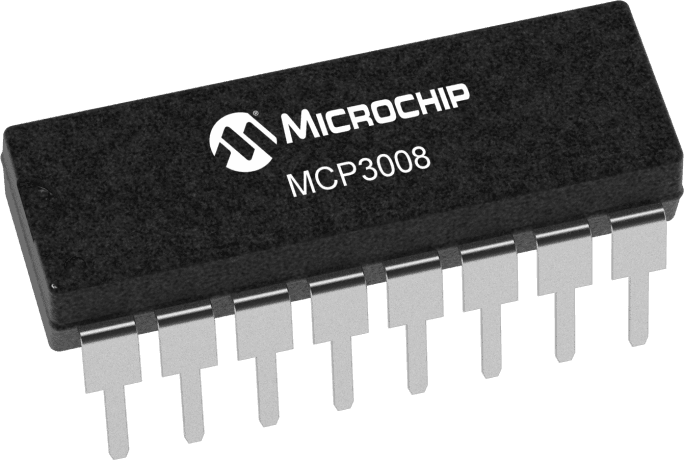

Product Images
