64-position digital potentiometer with 50kR resistance and 20% tolerance. Features a 2-wire serial control interface and non-volatile EEPROM memory. Operates from a 2.7V to 5.5V supply voltage, with a typical supply current of 45uA. Packaged in a 3mm x 3mm x 0.95mm MSOP surface-mount package. Suitable for applications requiring precise resistance adjustment.
PackageMSOP
Current45uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4021-503E/MS technical specifications.
General
Package/Case
MSOP
Control Interface
SERIAL
Height
0.95mm
Interface
Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
64
Number of Taps
64
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Tolerance
20%
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4021-503E/MS Datasheet
Download the complete datasheet for Microchip MCP4021-503E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

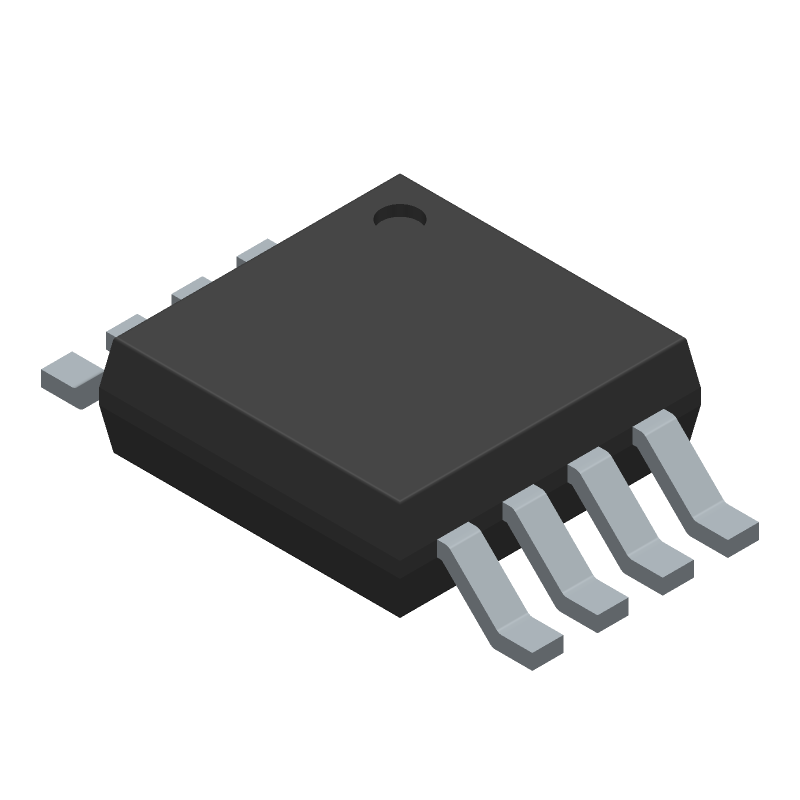

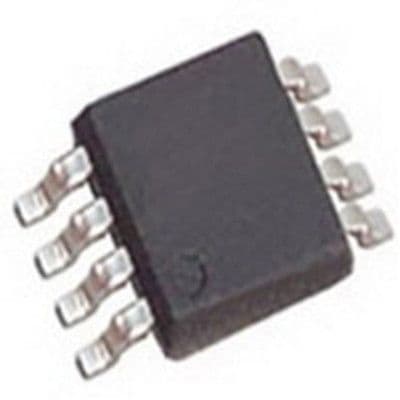

Product Images
