10k Ohm, 256-position volatile linear digital potentiometer with 8-bit resolution. Features SPI serial interface, 1MHz bandwidth, and operates from 2.7V to 5.5V supply voltage. Single channel, single circuit, single element device with 20% resistance tolerance. Packaged in an 8-pin PDIP for through-hole mounting.
Frequency10MHz
PackagePDIP
Current340uA
Resistance10kR
Quick Jump:
Technical Specifications
Microchip MCP41010-I/P technical specifications.
General
Bandwidth
1MHz
Package/Case
PDIP
Frequency
10MHz
Height
0.145inch
Interface
SPI, Serial
Lead Free
Lead Free
Length
0.385inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
340uA
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Positions
256
Number of Taps
256
Package Quantity
60
Packaging
Rail/Tube
Quiescent Current
10nA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistor Type
Potentiometer
Resolution
8b
RoHS Compliant
Yes
Supply Current
340uA
Tolerance
20%
Width
0.26inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP41010-I/P Datasheet
Download the complete datasheet for Microchip MCP41010-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

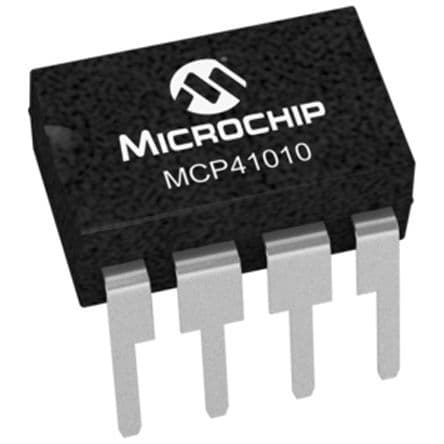

Product Images
