Microchip
MCP4252-503E/MF
50K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 257 POSITIONS, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10
PackageDFN
Current1mA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4252-503E/MF technical specifications.
General
Package/Case
DFN
Interface
SPI, Serial
Max Operating Temperature
125°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
120
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
50kR
RoHS Compliant
Yes
Supply Current
1mA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4252-503E/MF Datasheet
Download the complete datasheet for Microchip MCP4252-503E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

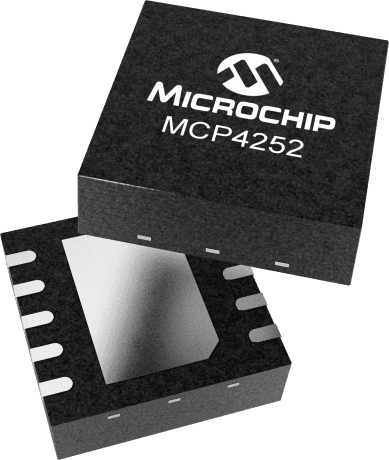

Product Images
