Dual-channel, 10kR linear digital potentiometer featuring 257 positions and non-volatile EEPROM memory. This surface-mount component operates from 1.8V to 5.5V with a 5V nominal supply, offering SPI and serial interfaces. Designed for automotive applications, it boasts a wide operating temperature range of -40°C to 125°C and is housed in a 14-pin SOIC package.
PackageSOIC
Current550uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4261-103E/SL technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
8.65mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Positions
257
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
57
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Series
WiperLock™ Series
Supply Current
550uA
Termination
SMD/SMT
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4261-103E/SL Datasheet
Download the complete datasheet for Microchip MCP4261-103E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

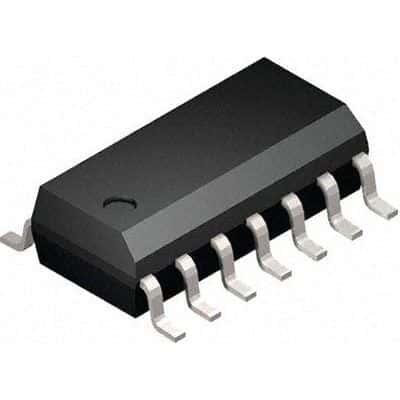

Product Images
