Quad 10k digital potentiometer featuring a 3-wire serial control interface and 129 discrete positions per channel. This surface-mount component, housed in a 20-pin TSSOP package (6.6mm L x 4.5mm W x 1.05mm H), operates with a supply voltage range of 2.7V to 5.5V. It offers non-volatile memory and a resistance tolerance of 20%, with a maximum operating temperature of 125°C.
PackageTSSOP
Current450uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4341-103E/ST technical specifications.
General
Package/Case
TSSOP
Height
1.05mm
Interface
SPI, Serial, 4-WIRE
Length
6.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Number of Positions
129
Number of Taps
129
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Series
WiperLock™ Series
Supply Current
450uA
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4341-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4341-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

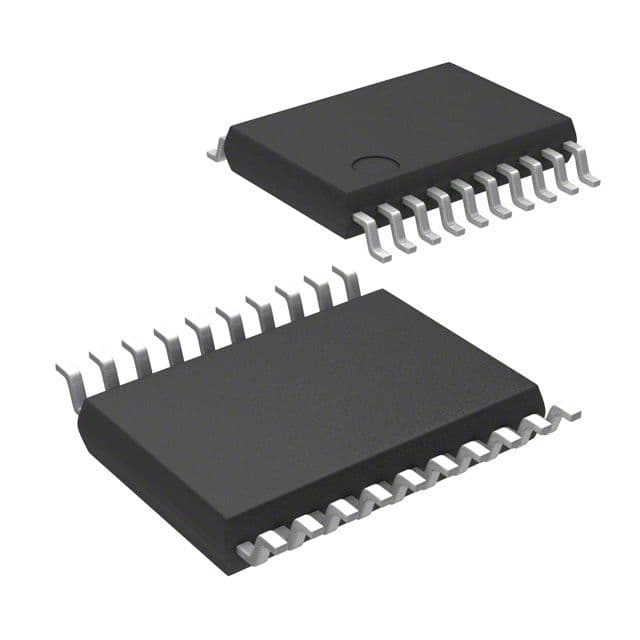

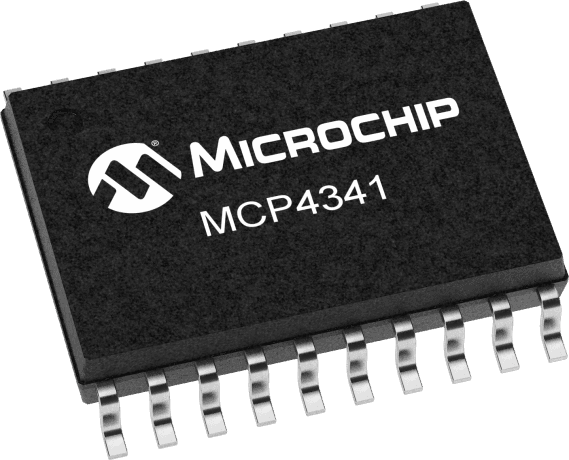

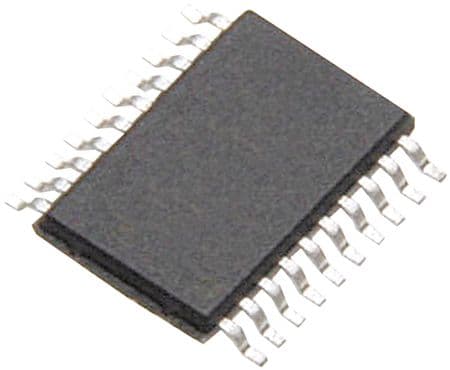

Product Images
