Quad 10k digital potentiometer featuring a 2-wire serial control interface and 129 positions per channel. This surface-mount IC operates with a supply voltage range of 2.7V to 5.5V and a maximum operating temperature of 125°C. It offers non-volatile EEPROM memory for wiper settings and a linear taper. The component is housed in a 20-pin TSSOP package with dimensions of 6.6mm (length) x 4.5mm (width) x 1.05mm (height).
PackageTSSOP
Current600uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4441-103E/ST technical specifications.
General
Package/Case
TSSOP
Height
1.05mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Number of Positions
129
Number of Taps
129
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Series
WiperLock™
Supply Current
600uA
Taper
Linear
Tolerance
20%
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4441-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4441-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

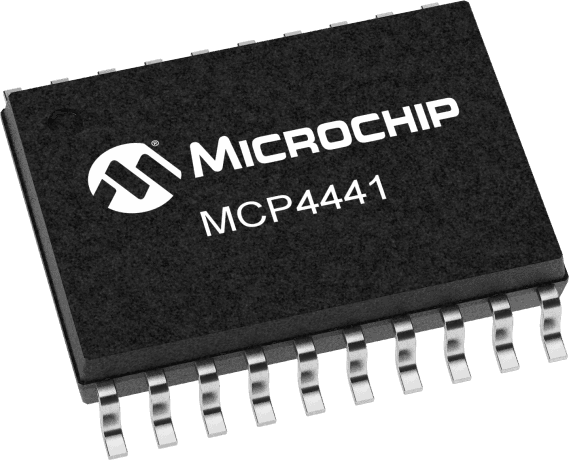

Product Images
