Microchip
MCP4562-104E/MS
100K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 257 POSITIONS, PDSO8, PLASTIC, MSOP-8
PackageMSOP
Current2.5uA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4562-104E/MS technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Interface
I2C, Serial, 2-Wire
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4562-104E/MS Datasheet
Download the complete datasheet for Microchip MCP4562-104E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

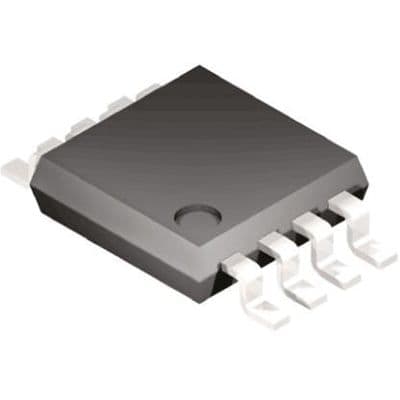

Product Images
