Dual-channel, 128-position digital potentiometer with 50kΩ resistance and 20% tolerance. Features a linear taper and 2-wire I2C serial interface for control. Operates from 1.8V to 5.5V supply voltage, with a typical supply current of 2.5µA. Packaged in a 3mm x 3mm x 0.95mm MSOP surface-mount package, suitable for operation between -40°C and 125°C.
PackageMSOP
Current2.5uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4632-503E/UN technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Interface
I2C, Serial, 2-Wire
Length
3mm
Max Operating Temperature
125°C
Memory Type
Volatile, , Non-Volatile
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Tolerance
20%
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4632-503E/UN Datasheet
Download the complete datasheet for Microchip MCP4632-503E/UN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

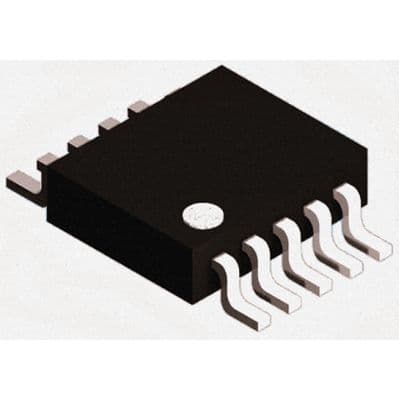

Product Images
