Dual 10kΩ digital potentiometer with 128 positions and 129 taps, featuring a linear taper and 20% resistance tolerance. This surface-mount component operates from 1.8V to 5.5V with a typical supply current of 2.5µA. It supports I2C and 2-wire serial interfaces, with non-volatile memory for configuration. The compact MSOP-10 package measures 3mm x 3mm x 0.85mm and operates across a temperature range of -40°C to 125°C.
PackageMSOP
Current2.5uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4642-103E/UN technical specifications.
General
Package/Case
MSOP
Height
0.85mm
Interface
I2C, Serial, 2-Wire
Length
3mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Tolerance
20%
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4642-103E/UN Datasheet
Download the complete datasheet for Microchip MCP4642-103E/UN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

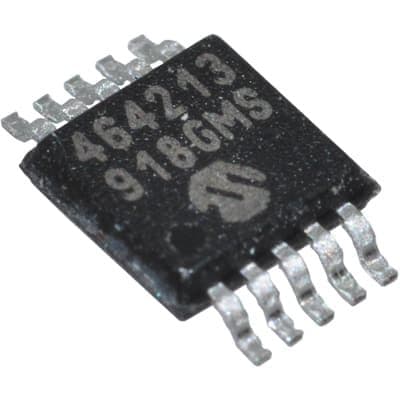

Product Images
