Technical Specifications
Microchip MCP4726A2T-E/MAY technical specifications.
General
Package/Case
DFN
Full Scale Error
82LSB
Integral Nonlinearity (INL)
14.5LSB
Interface
I2C, Serial
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.098W
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
12
Number of Converters
1
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Settling Time
6us
Supply Current
210uA
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4726A2T-E/MAY Datasheet
Download the complete datasheet for Microchip MCP4726A2T-E/MAY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

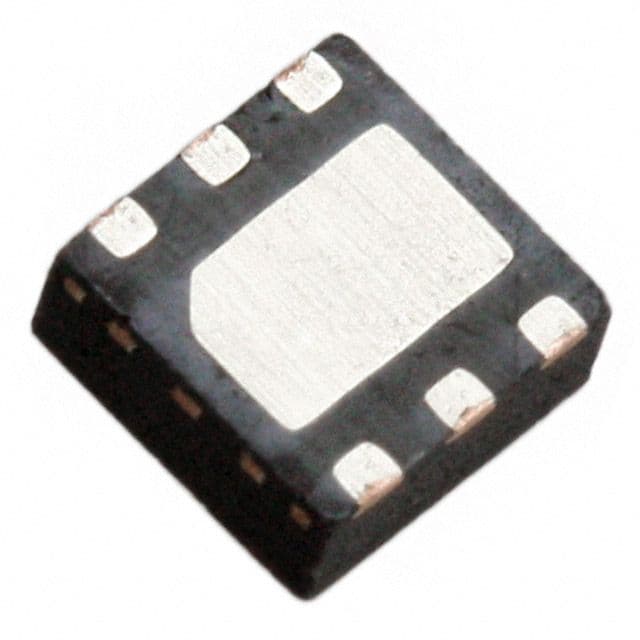

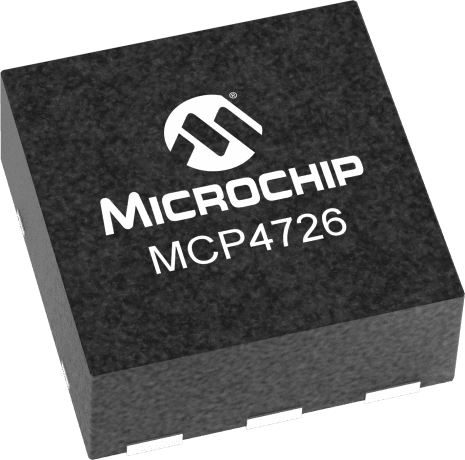

Product Images
