Single-channel, general-purpose operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This CMOS amplifier offers a low input bias current of 1pA and a maximum input offset voltage of 4.5mV. Operating from 1.8V to 6V, it provides a 23mA output current per channel and a 0.6V/µs slew rate. Packaged in a compact SC-70 (SC) surface-mount plastic case, this RoHS compliant component is ideal for various electronic applications.
PackageSC
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6001T-E/LT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SC
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1MHz
Height
1mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
4.5mV
Input Offset Voltage-Max
4.5mV
Lead Free
Lead Free
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
5.5V
Output Current
23mA
Output Current per Channel
23mA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
86dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
100uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
112dB
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6001T-E/LT Datasheet
Download the complete datasheet for Microchip MCP6001T-E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

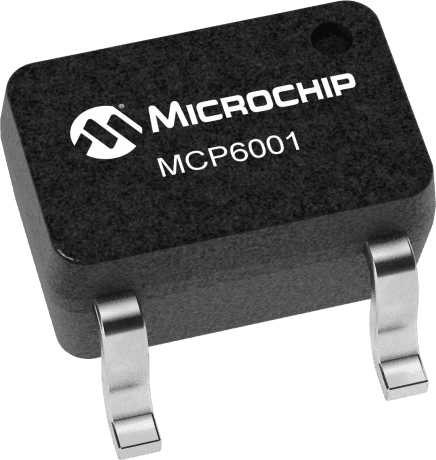

Product Images
