Quad operational amplifier featuring a 1MHz gain bandwidth product and 1MHz bandwidth. This general-purpose op-amp offers a 4.5mV maximum input offset voltage and a 0.6V/µs slew rate. Operating from 1.8V to 6V, it provides 23mA output current per channel and a 112dB voltage gain. Packaged in a 14-pin TSSOP with dimensions of 5mm length, 4.4mm width, and 0.9mm height, this surface-mount component is RoHS compliant.
Frequency3MHz
PackageTSSOP
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6004-I/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
TSSOP
Common Mode Rejection Ratio
60dB
Frequency
3MHz
Gain Bandwidth Product
1MHz
Height
0.9mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
4.5mV
Input Offset Voltage-Max
4.5mV
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Voltage
5.5V
Output Current
23mA
Output Current per Channel
23mA
Package Quantity
96
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
86dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
100uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
112dB
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6004-I/ST Datasheet
Download the complete datasheet for Microchip MCP6004-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

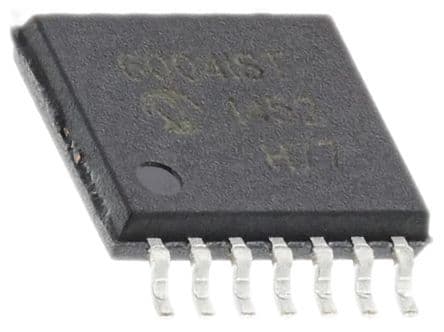

Product Images
