General purpose operational amplifier featuring a 2.8MHz bandwidth and 2.3V/µs slew rate. This single-channel, CMOS amplifier offers a 2mV input offset voltage and 1pA input bias current. It operates from a 2.7V to 6V supply voltage range, consuming 230µA of quiescent current. The amplifier is housed in a through-hole PDIP-8 package with a 0.300-inch width.
PackagePDIP
Current230uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP601-E/P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
2.8MHz
Package/Case
PDIP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
2.8MHz
Height
0.195inch
Input Bias Current
1pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
230uA
Operating Supply Voltage
5.5V
Output Current
22mA
Output Current per Channel
22mA
Package Quantity
60
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
2.3V/µs
Supply Current
230uA
Technology
CMOS
Unity Gain Bandwidth Product
2.8MHz
Voltage Gain
115dB
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP601-E/P Datasheet
Download the complete datasheet for Microchip MCP601-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

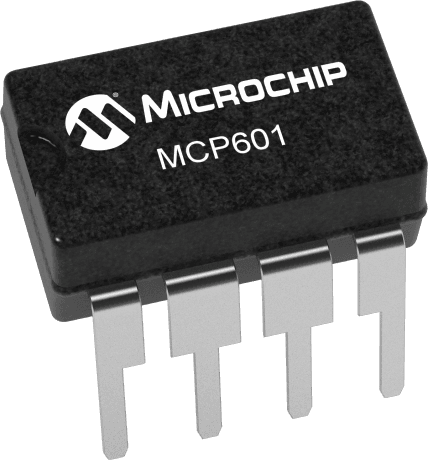

Product Images
