Dual operational amplifier featuring Rail-to-Rail output and input capabilities. This general-purpose op amp offers a 14kHz gain bandwidth product and a 0.003V/µs slew rate. Operating from 1.4V to 6V supply voltage, it draws a low 600nA quiescent current. The device boasts a 60dB CMRR and 70dB PSRR, with an input bias current of 1pA and an input offset voltage of 3mV. Packaged in an 8-pin SOIC for surface mounting, this RoHS compliant component operates across a -40°C to 85°C temperature range.
PackageSOIC
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6042T-I/SN technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
600nA
Operating Supply Voltage
5.5V
Output Current
21mA
Output Current per Channel
20mA
Package Quantity
3300
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6042T-I/SN Datasheet
Download the complete datasheet for Microchip MCP6042T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

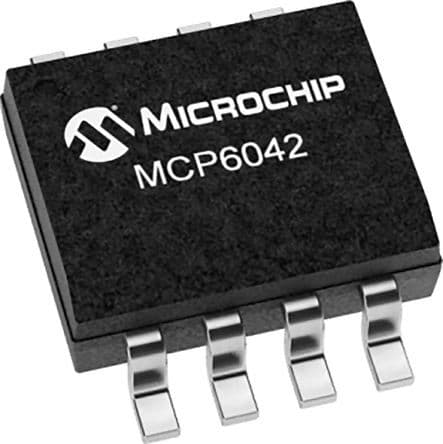

Product Images
