Quad operational amplifier featuring a 14kHz bandwidth and 3mV maximum input offset voltage. This general-purpose, CMOS amplifier offers a 60dB common mode rejection ratio and 70dB power supply rejection ratio. It operates from a 1.4V to 6V supply range with a typical 600nA quiescent current. The component is housed in a 14-pin PDIP package for through-hole mounting.
PackagePDIP
Current600nA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6044-E/P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
14kHz
Package/Case
PDIP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Height
0.195inch
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Length
19.69mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Through Hole
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
600nA
Operating Supply Voltage
5.5V
Output Current
21mA
Package Quantity
30
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6044-E/P Datasheet
Download the complete datasheet for Microchip MCP6044-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

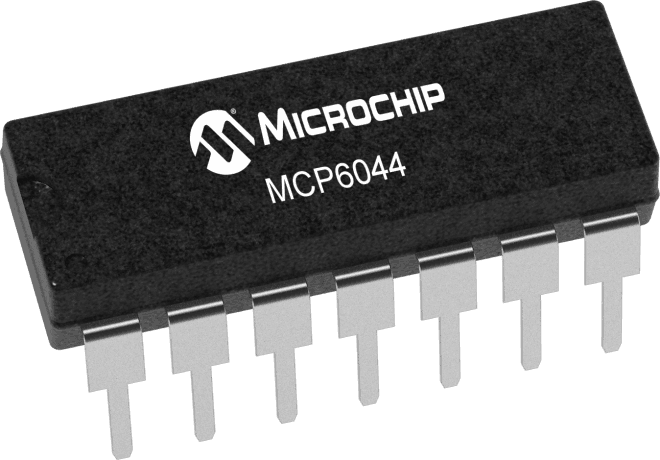

Product Images
