Quad operational amplifier featuring a 14kHz bandwidth and 3mV maximum input offset voltage. This general-purpose, CMOS device offers a 60dB common mode rejection ratio and 70dB power supply rejection ratio. It operates from a 1.4V to 6V supply voltage range and provides a 21mA output current. Packaged in a 14-pin SOIC surface-mount case, this RoHS compliant component is suitable for a wide temperature range of -40°C to 125°C.
PackageSOIC
Current600nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6044-E/SL technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
14kHz
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
14kHz
Height
1.25mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Voltage
5.5V
Output Current
21mA
Package Quantity
57
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.003V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
14kHz
Voltage Gain
115dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6044-E/SL Datasheet
Download the complete datasheet for Microchip MCP6044-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

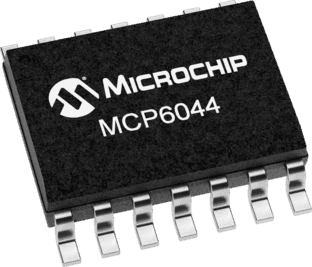

Product Images
