General purpose operational amplifier IC featuring a 100kHz gain bandwidth product and 115dB voltage gain. This single-channel, CMOS amplifier operates from 1.4V to 5.5V supply voltage, drawing 600nA quiescent current. It offers a 60dB CMRR and 70dB PSRR, with a 3mV input offset voltage and 1pA input bias current. The component is housed in an 8-pin PDIP package for through-hole mounting, with a maximum operating temperature of 125°C.
PackagePDIP
Current600nA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6143-E/P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
PDIP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
100kHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
3mV
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.4V
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
600nA
Output Current
21mA
Output Current per Channel
20mA
Package Quantity
60
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.024V/µs
Supply Current
600nA
Technology
CMOS
Unity Gain Bandwidth Product
100kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6143-E/P Datasheet
Download the complete datasheet for Microchip MCP6143-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

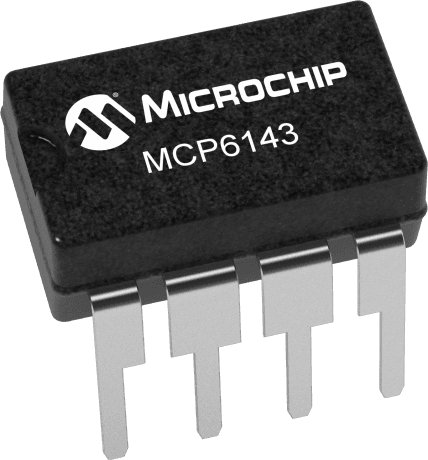

Product Images
