Dual operational amplifier featuring a 300kHz gain bandwidth product and 0.15V/µs slew rate. This general-purpose, CMOS amplifier operates from 1.8V to 6V supply voltage with a typical 20µA supply current. It offers a 61dB common mode rejection ratio and 5mV input offset voltage. The 8-pin SOIC package is designed for surface mounting, with a 23mA output current per channel.
Frequency1kHz
PackageSOIC
Current20uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6232-E/SN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 300kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 61dB |
| Gain Bandwidth Product | 300kHz |
| Height | 1.25mm |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 5mV |
| Input Offset Voltage-Max | 5mV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Frequency | 1kHz |
| Max Input Voltage | 6V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 20uA |
| Operating Supply Voltage | 5.5V |
| Output Current | 23mA |
| Output Current per Channel | 23mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.15V/µs |
| Slew Rate-Nom | 0.15V/µs |
| Supply Current | 20uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 300kHz |
| Voltage Gain | 110dB |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6232-E/SN Datasheet
Download the complete datasheet for Microchip MCP6232-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

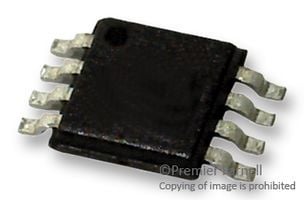

Product Images
