MCP6L02T-E/MS

Dual Op Amp, 1MHz GBW, 6V, 2pA Ib, 5mV Vos, MSOP

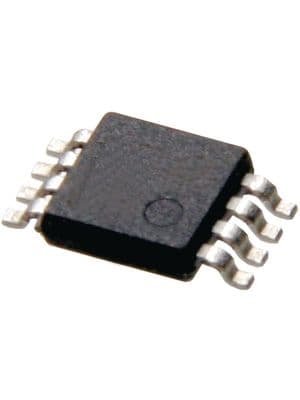

Dual operational amplifier featuring Rail-to-Rail input and output, a 1MHz gain bandwidth product, and a 0.6V/µs slew rate. This CMOS amplifier operates from 1.8V to 6V supply voltage, offering a 105dB voltage gain and 20mA output current. With a low input bias current of 2pA and a 5mV input offset voltage, it is suitable for surface mount applications in an 8-pin MSOP package. RoHS compliant and designed for general-purpose use, it boasts a 78dB CMRR and 83dB PSRR.

PackageMSOP

Current85uA

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip MCP6L02T-E/MS technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	1MHz
Package/Case	MSOP
Common Mode Rejection Ratio	78dB
Gain Bandwidth Product	1MHz
Height	0.95mm
Input Bias Current	2pA
Input Offset Voltage (Vos)	5mV
Input Offset Voltage-Max	5mV
Lead Free	Lead Free
Length	3mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	6V
Min Supply Voltage	1.8V
Mount	Surface Mount
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Output Current	20mA
Package Quantity	2500
Packaging	Tape and Reel
Power Supply Rejection Ratio (PSRR)	83dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	0.6V/µs
Slew Rate-Nom	0.6V/µs
Supply Current	85uA
Technology	CMOS
Unity Gain Bandwidth Product	1MHz
Voltage Gain	105dB
Width	3mm
