Quad operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose CMOS op-amp offers a low input bias current of 2pA and a maximum input offset voltage of 5mV. Operating from 1.8V to 6V, it provides a 20mA output current per channel and a slew rate of 0.6V/µs. Packaged in a 14-pin SOIC (3.9mm width, 8.65mm length, 1.25mm height) for surface mounting, this lead-free, RoHS-compliant component is suitable for operation between -40°C and 125°C.
PackageSOIC
Current85uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6L04T-E/SL technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | SOIC |
| Gain Bandwidth Product | 1MHz |
| Height | 1.25mm |
| Input Bias Current | 2pA |
| Input Offset Voltage (Vos) | 5mV |
| Input Offset Voltage-Max | 5mV |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 85uA |
| Output Current | 20mA |
| Output Current per Channel | 20mA |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Supply Current | 85uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 105dB |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP6L04T-E/SL Datasheet
Download the complete datasheet for Microchip MCP6L04T-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

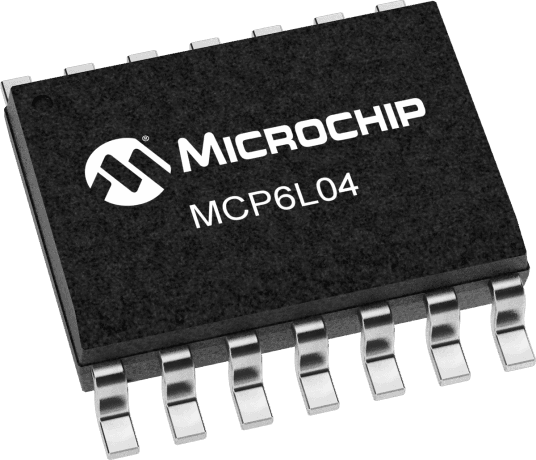

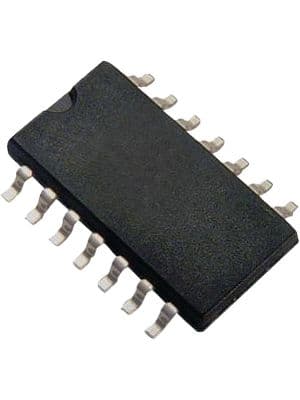

Product Images
