Single-channel operational amplifier featuring an 80kHz bandwidth and 80kHz gain bandwidth product. Boasts a low input offset voltage of 8µV and an exceptionally low input bias current of 5pA. Operates from a 1.6V to 5.5V supply voltage with a typical supply current of 7.5µA. Delivers a high voltage gain of 135dB and an output current of 17mA. Packaged in a compact SC case (2.25mm L x 1.35mm W x 1mm H), this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageSC
Current7.5uA
Quick Jump:
Technical Specifications
Microchip MCP6V11UT-E/LT technical specifications.
General
Bandwidth
80kHz
Package/Case
SC
Gain Bandwidth Product
80kHz
Height
1mm
Input Bias Current
5pA
Input Offset Voltage (Vos)
8uV
Input Offset Voltage-Max
8uV
Lead Free
Lead Free
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current
17mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
118dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.03V/µs
Slew Rate-Nom
0.03V/µs
Supply Current
7.5uA
Voltage Gain
135dB
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6V11UT-E/LT Datasheet
Download the complete datasheet for Microchip MCP6V11UT-E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

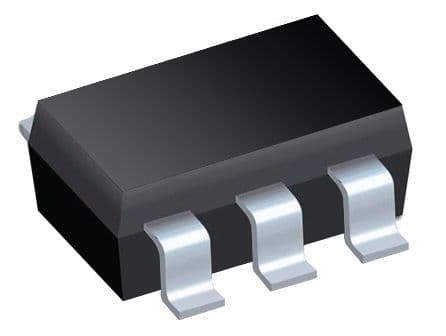

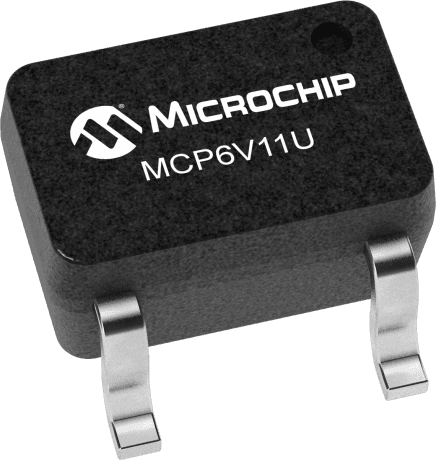

Product Images
