MICROCHIP

MCP79521-I/MS

Datasheet

Real Time Clock 64B MSOP-10 1.8V 3.6V -40°C 85°C

Microchip

MCP79521-I/MS

Name: MCP79521-I/MS Microchip
Brand: Microchip
SKU: MCP79521-I/MS

Real Time Clock 64B MSOP-10 1.8V 3.6V -40°C 85°C

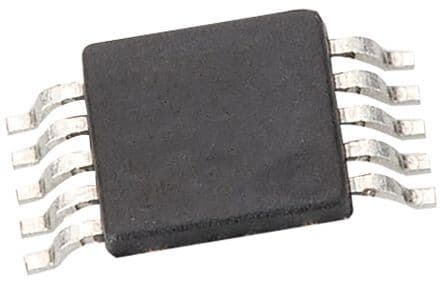

The MCP79521-I/MS is a real time clock IC with a memory size of 64 bytes. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 1.8V and 3.6V. The package type is MSOP-10, with dimensions of 3mm in length, 3mm in width, and 0.95mm in height. The IC is lead free and RoHS compliant, packaged in a rail or tube with 100 units per package.

PackageMSOP

Quick Jump:

Technical Specifications

Microchip MCP79521-I/MS technical specifications.

General

Package/Case	MSOP
Height	0.95mm
Lead Free	Lead Free
Length	3mm
Logic Function	Clock
Max Operating Temperature	85°C
Max Supply Voltage	3.6V
Memory Size	64B
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Package Quantity	100
Packaging	Rail/Tube
Radiation Hardening	No
RoHS Compliant	Yes
Time Format	HH:MM:SS:hh
Width	3mm
