PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP98242-BE/ST technical specifications.
General
Package/Case
TSSOP
Height
0.95mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
4.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
3V
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
10
Operating Supply Current
500uA
Operating Supply Voltage
3.3V
Output Type
Digital, I2C
Packaging
Rail/Tube
Radiation Hardening
No
Resolution
10b
RoHS Compliant
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP98242-BE/ST Datasheet
Download the complete datasheet for Microchip MCP98242-BE/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

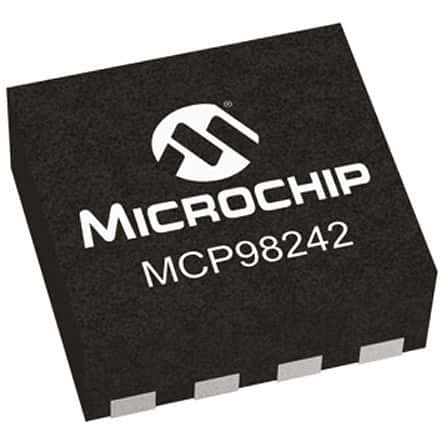

Product Images
