1-channel power supply support circuit, a surface mount integrated circuit designed for power management. Features over-temperature fault protection and an on/off interface. Operates within a 2.5V to 5.5V supply voltage range, delivering up to 1.1A maximum output current. Includes a single high-side switch with a maximum on-state resistance of 220mΩ. Packaged in tape and reel, this RoHS compliant component operates from -40°C to 85°C.
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2097-1YMT-TR technical specifications.
General
Fault Protection
Over Temperature
Interface
On/Off
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.1A
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Switches
1
On-state Resistance-Max
220MR
Output Configuration
High Side
Package Quantity
5000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
300uA
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2097-1YMT-TR Datasheet
Download the complete datasheet for Microchip MIC2097-1YMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

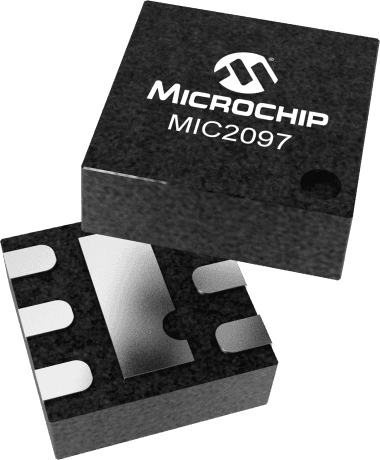

Product Images
