Microchip
MIC2171BU
Switching Regulator, Current-mode, 5.5A, 115kHz Switching Freq-Max, BIPolar, PSSO5, TO-263, 5 PIN
PackageTO-263-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2171BU technical specifications.
General
Package/Case
TO-263-6
Duty Cycle
95%
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
65V
Max Supply Voltage
40V
Mount
Surface Mount
Number of Outputs
1
Output Current
2.5A
Output Type
Adjustable
Output Voltage
65V
Packaging
Rail/Tube
RoHS Compliant
No
Synchronous Rectifier
No
Topology
Flyback, Forward Converter, Cuk
Compliance
RoHS
Not Compliant
Datasheet
Microchip MIC2171BU Datasheet
Download the complete datasheet for Microchip MIC2171BU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

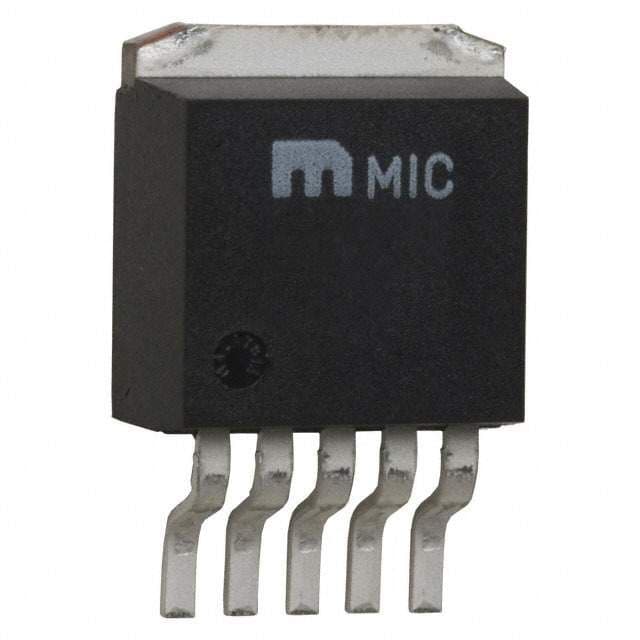

Product Images
