Boost DC/DC controller and regulator with adjustable output voltage from 1.24V to 32V. Features a maximum output current of 2A and a typical output current of 900mA, operating with up to 80% efficiency. Input voltage range is 2.5V to 5.5V, with a maximum switching frequency of 2.5MHz. Packaged in a compact SOT-23-5 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2250-1YD5-TR technical specifications.
General
Package/Case
SOT-23-5
Efficiency
80%
Height
0.87mm
Length
2.9mm
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
32V
Min Output Voltage
1.24V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
900mA
Output Type
Adjustable
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Switching Frequency-Max
2.5MHz
Synchronous Rectifier
No
Topology
Boost
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2250-1YD5-TR Datasheet
Download the complete datasheet for Microchip MIC2250-1YD5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

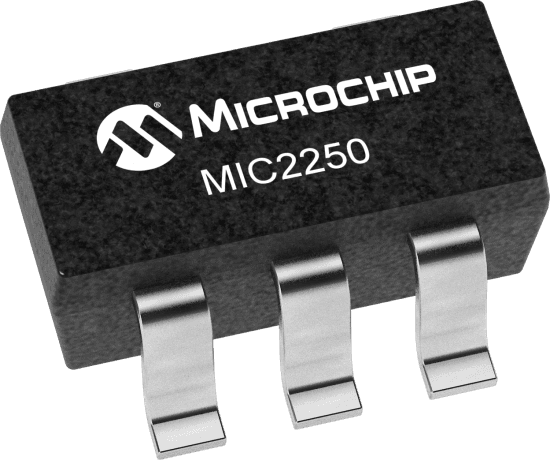

Product Images
