6-Segment LED Driver IC for efficient power management. Features analog and PWM dimming capabilities with a 1.2MHz switching frequency. Operates from a 2.5V to 10V input voltage range, delivering up to 34V output voltage. Surface mountable in a 5-pin TSOT-23 package, this lead-free component offers 500mA output current and 750mA per channel. Designed for high-temperature operation up to 105°C.
Frequency1.2MHz
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2287CYD5-TR technical specifications.
General
| Package/Case | SOT-23-5 |
| Dimming | Analog, PWM |
| Frequency | 1.2MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 6 |
| Operating Frequency | 1.2 MHz |
| Output Current | 500mA |
| Output Current per Channel | 750mA |
| Output Voltage | 34V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1.2MHz |
| Termination | SMD/SMT |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2287CYD5-TR Datasheet
Download the complete datasheet for Microchip MIC2287CYD5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

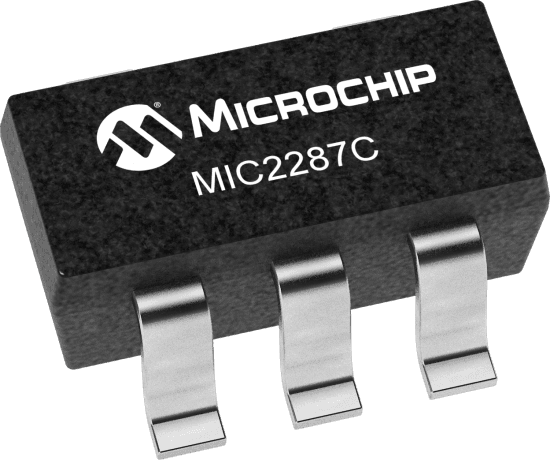

Product Images
