The MIC2291-15YML-TR is a boost driver IC with a frequency of 1.2MHz and an output current of 1.2A. It operates within a temperature range of -40°C to 125°C and is packaged in a DFN package. The device is RoHS compliant and lead free, and is available in a tape and reel packaging with 5000 units per package. It is a single-output device with a maximum output voltage of 16V and a minimum supply voltage of 2.5V. The IC is designed for surface mount applications and supports analog and PWM dimming.
Frequency1.2MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2291-15YML-TR technical specifications.
General
| Package/Case | DFN |
| Dimming | Analog, PWM |
| Frequency | 1.2MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 3 |
| Output Current per Channel | 1.2A |
| Output Voltage | 16V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2291-15YML-TR Datasheet
Download the complete datasheet for Microchip MIC2291-15YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

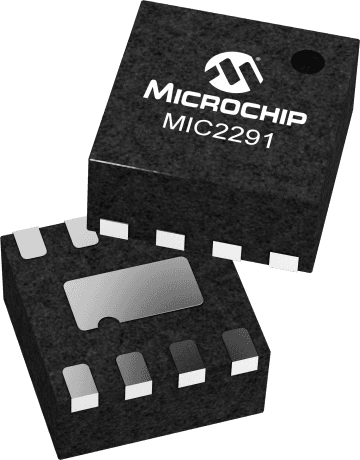

Product Images
