High-performance 600mA DC/DC switching regulator with a maximum switching frequency of 4.6MHz. This positive, fixed output voltage regulator operates from a 2.7V to 5.5V input range and features a synchronous rectifier for enhanced efficiency. Designed for surface mount applications, it offers a wide operating temperature range of -40°C to 125°C and is supplied in tape and reel packaging. This lead-free and RoHS compliant component is ideal for power management solutions.
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC23050-4YML-TR technical specifications.
General
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 600mA |
| Output Type | Fixed |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | HyperLight Load® |
| Switching Frequency-Max | 4.6MHz |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC23050-4YML-TR Datasheet
Download the complete datasheet for Microchip MIC23050-4YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

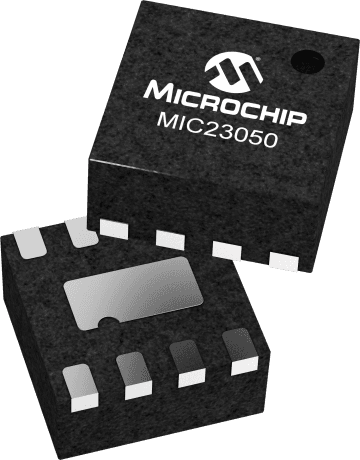

Product Images
