The MIC29152BT is an adjustable linear voltage regulator with a maximum input voltage of 26V and a maximum output voltage of 25V. It has a current rating of 1.5A and is packaged in a TO-220-5 package for through-hole mounting. The device operates over a temperature range of -40°C to 125°C and is not RoHS compliant. It is available in a rail or tube packaging format.
PackageTO-220-5
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MIC29152BT technical specifications.
General
| Package/Case | TO-220-5 |
| Current Rating | 1.5A |
| Lead Free | Contains Lead |
| Max Input Voltage | 26V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 25V |
| Min Output Voltage | 1.25V |
| Mount | Through Hole |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip MIC29152BT Datasheet
Download the complete datasheet for Microchip MIC29152BT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

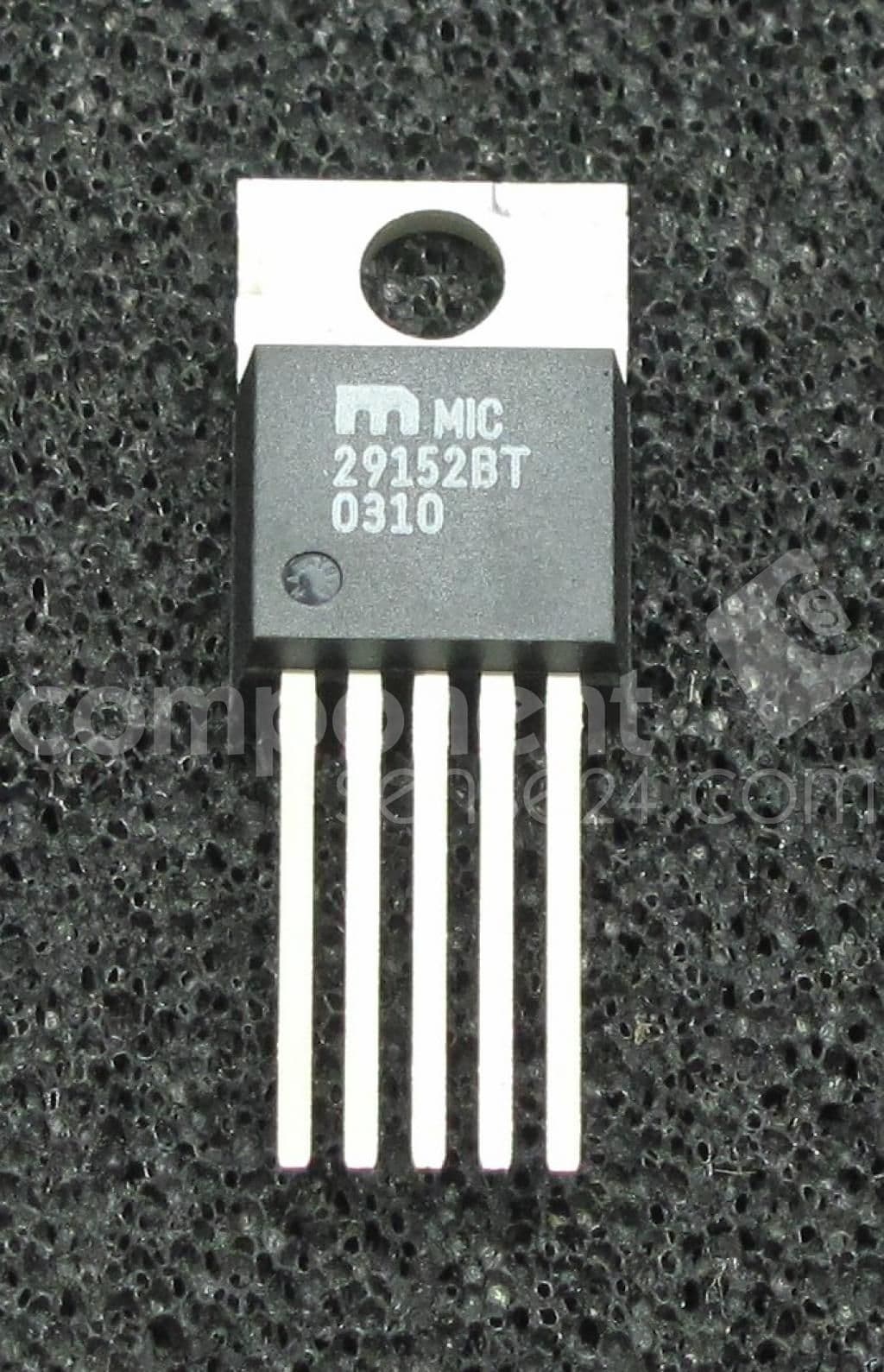

Product Images
