Positive fixed output LDO regulator with a 3.3V nominal output voltage and 1% accuracy. Features a maximum output current of 400mA and a low dropout voltage of 400mV. Operates with a maximum input voltage of 26V and a minimum of -1.5V, across an industrial temperature range of -40°C to 125°C. Packaged in a 4-pin SOT-223 surface mount configuration, supplied on tape and reel.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC2920A-3.3WS-TR technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
400mV
Height
1.6mm
Input Bias Current
60nA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
26V
Min Input Voltage
-1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
400mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
200uA
Radiation Hardening
No
Reach SVHC Compliant
No
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2920A-3.3WS-TR Datasheet
Download the complete datasheet for Microchip MIC2920A-3.3WS-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

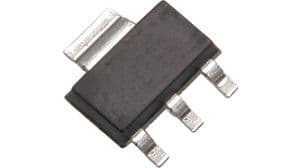

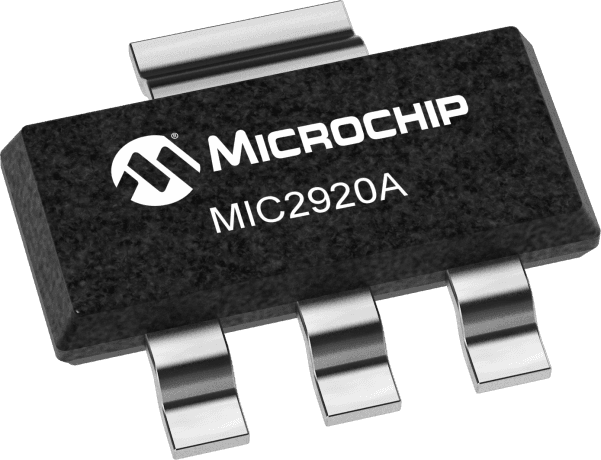

Product Images
