Microchip
MIC29371-3.3BU
Fixed Positive LDO Regulator, 3.3V, 0.75V Dropout, BIPolar, PSSO5, TO-263, 5 PIN
PackageTO-263-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC29371-3.3BU technical specifications.
General
Package/Case
TO-263-6
Lead Free
Contains Lead
Max Input Voltage
26V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Max Supply Current
16mA
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
750mA
Output Type
Fixed
Packaging
Rail/Tube
Quiescent Current
300uA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Microchip MIC29371-3.3BU Datasheet
Download the complete datasheet for Microchip MIC29371-3.3BU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

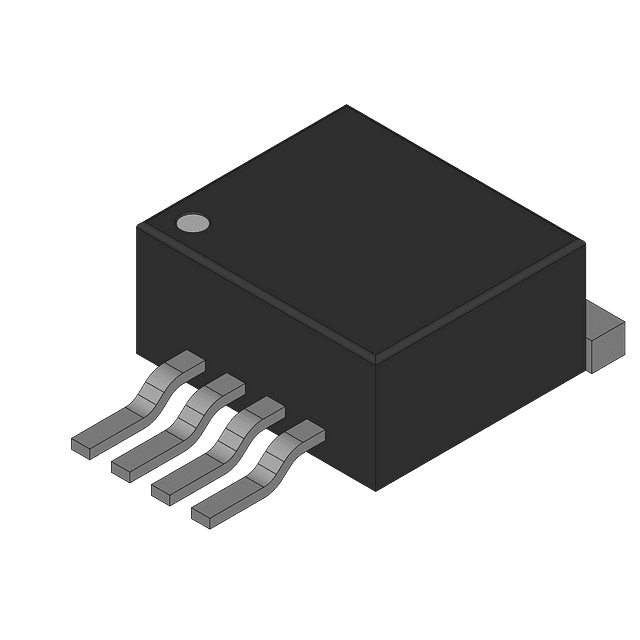

Product Images
