Dual-channel MOSFET driver with independent channels, capable of 3A output current. Features a 33ns turn-on delay and 35ns fall time, operating from a 4.5V to 18V supply range. This surface-mount integrated circuit is housed in a SOIC package, offering a maximum power dissipation of 960mW and a maximum operating temperature of 85°C.
PackageSOIC
Voltage20V
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4424YM technical specifications.
General
Package/Case
SOIC
Channel Type
Independent
Fall Time
35ns
Height
1.48mm
Lead Free
Lead Free
Length
4.93mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
960mW
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
3A
Output Voltage
25mV
Package Quantity
95
Packaging
Rail/Tube
Propagation Delay
75ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Turn-Off Delay Time
33ns
Turn-On Delay Time
33ns
Voltage
20V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC4424YM Datasheet
Download the complete datasheet for Microchip MIC4424YM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

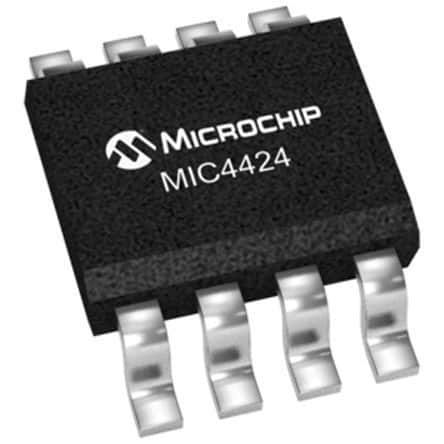

Product Images
