Dual-channel MOSFET driver featuring independent channels, each capable of 1.5A output current. This surface-mount integrated circuit operates from a 4.5V to 18V supply voltage, with a maximum output voltage of 25mV. Designed for efficient switching, it offers a typical turn-on delay of 40ns and a fall time of 20ns. Packaged in a lead-free SOIC-8 case, this RoHS-compliant component is supplied on tape and reel.
PackageSOIC
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4426YMTR technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Independent |
| Fall Time | 20ns |
| Height | 1.48mm |
| Lead Free | Lead Free |
| Length | 4.93mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1.5A |
| Output Voltage | 25mV |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 50ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Turn-Off Delay Time | 40ns |
| Turn-On Delay Time | 40ns |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC4426YMTR Datasheet
Download the complete datasheet for Microchip MIC4426YMTR to view detailed technical specifications.
No datasheet is available for this part.

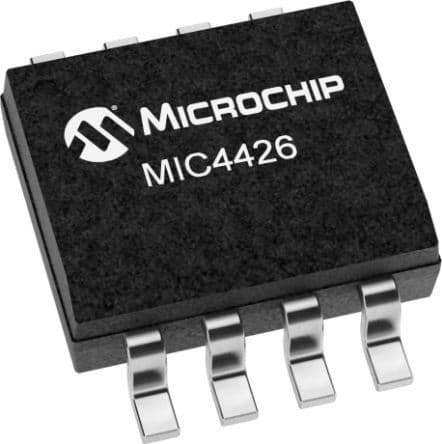

Product Images
