PackageDIP
Current200uA
MountingThrough Hole
Power1.5W
Quick Jump:
Technical Specifications
Microchip MIC4467ZN technical specifications.
General
Package/Case
DIP
Channel Type
Independent
Fall Time
25ns
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1.2A
Max Power Dissipation
1.5W
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
4
Number of Outputs
4
Output Current
1.2A
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
1.5W
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
200uA
Turn-Off Delay Time
75ns
Turn-On Delay Time
75ns
Compliance
RoHS
Compliant
Datasheet
Microchip MIC4467ZN Datasheet
Download the complete datasheet for Microchip MIC4467ZN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

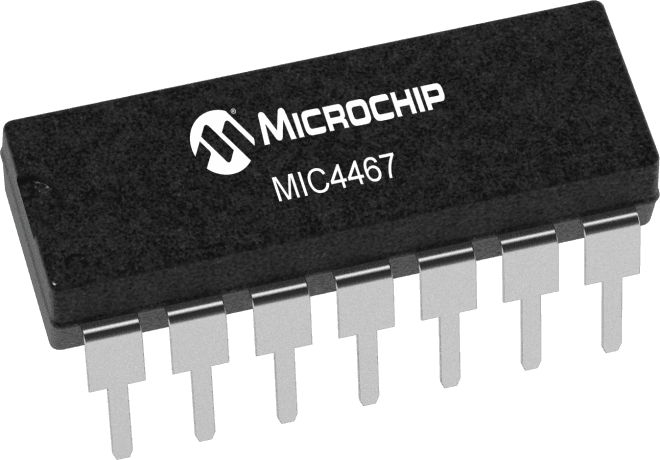

Product Images
