Technical Specifications
Microchip MIC4812YMME technical specifications.
General
Package/Case
MSOP
Dimming
PWM
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
100mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
6
Number of Segments
6
Output Current per Channel
100mA
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
500kHz
Compliance
RoHS
Compliant
Datasheet
Microchip MIC4812YMME Datasheet
Download the complete datasheet for Microchip MIC4812YMME to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

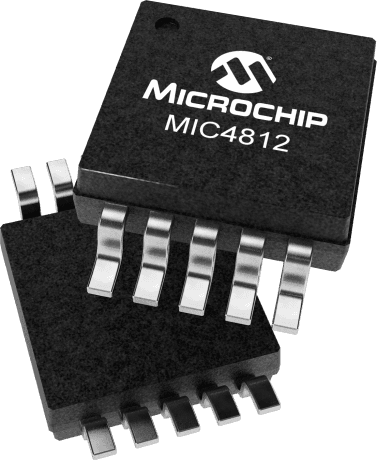

Product Images
