Positive fixed output voltage regulator, 3.3V, with a maximum output current of 80mA. Features a low dropout voltage of 300mV and an output voltage accuracy of 3%. Operates with a minimum input voltage of 2.5V and a maximum input voltage of 16V, within an operating temperature range of -40°C to 125°C. This surface mount component is supplied in a SOT-143 package, measuring 3.05mm x 1.4mm x 1.02mm, and is RoHS compliant.
PackageSOT-143
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5203-3.3YM4-TR technical specifications.
General
Accuracy
4%
Package/Case
SOT-143
Dropout Voltage
300mV
Height
1.02mm
Lead Free
Lead Free
Length
3.05mm
Max Input Voltage
16V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
80mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
3%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5203-3.3YM4-TR Datasheet
Download the complete datasheet for Microchip MIC5203-3.3YM4-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

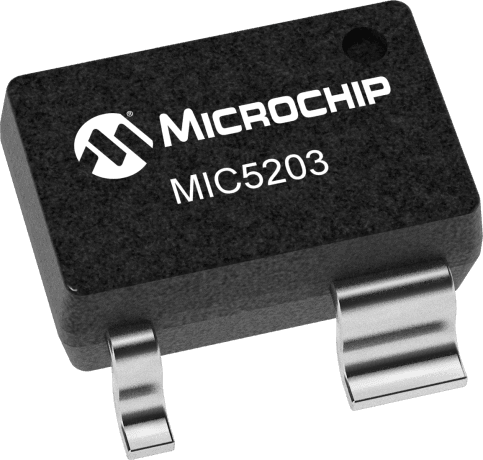

Product Images
