Adjustable positive linear voltage regulator (LDO) with 500mA output current and 1.25V to 5V adjustable output voltage range. Features a low 350mV dropout voltage and 1% output voltage accuracy. Operates from a 2.5V to 16V input voltage with a 75dB PSRR. Packaged in an 8-pin SOIC surface mount configuration, this lead-free component is suitable for applications requiring stable power delivery.
PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5209YM technical specifications.
General
Accuracy
1%
Package/Case
SOIC
Dropout Voltage
350mV
Height
1.48mm
Lead Free
Lead Free
Length
4.93mm
Max Input Voltage
16V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
5V
Min Output Voltage
1.25V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
5V
Output Voltage Accuracy
1%
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5209YM Datasheet
Download the complete datasheet for Microchip MIC5209YM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

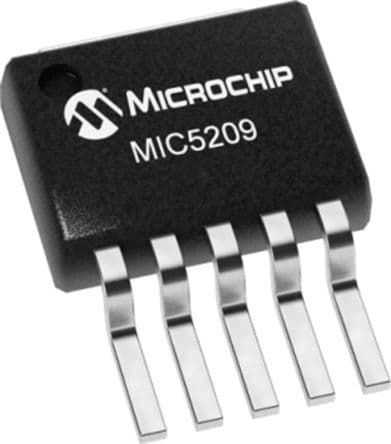

Product Images
