Positive fixed output voltage regulator, 3.3V nominal output, with 2% output voltage accuracy. Features a low dropout voltage of 100mV and a maximum output current of 10mA. Operates with a minimum input voltage of 2.7V and a maximum supply voltage of 7V. This surface mount component is housed in a compact TSOT package, measuring 2.9mm in length, 1.6mm in width, and 0.87mm in height. RoHS compliant with a wide operating temperature range of -40°C to 125°C.
PackageTSOT
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5232-3.3YD5-TR technical specifications.
General
Accuracy
2%
Package/Case
TSOT
Dropout Voltage
100mV
Height
0.87mm
Lead Free
Lead Free
Length
2.9mm
Max Input Voltage
7V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Min Output Voltage
3.3V
Max Supply Voltage
7V
Min Supply Voltage
4.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Nominal Supply Current
1.8uA
Number of Outputs
1
Number of Regulators
1
Output Current
10mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
2uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5232-3.3YD5-TR Datasheet
Download the complete datasheet for Microchip MIC5232-3.3YD5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

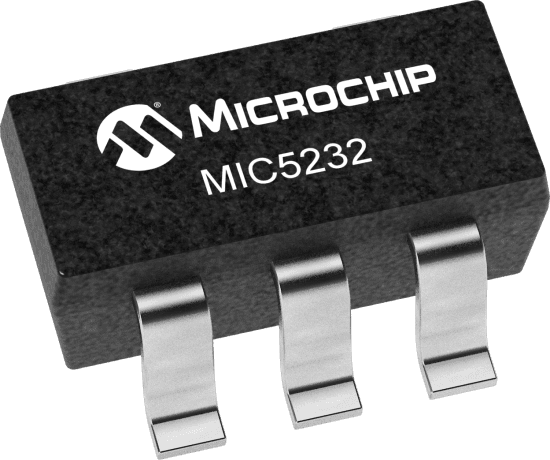

Product Images
