8-bit latch-based peripheral driver with 500mA maximum output current per channel and 50V output voltage. Features a parallel interface, through-hole mounting in a PDIP-22 package, and operates from a 5V to 12V supply voltage. This BIMOS integrated circuit offers 8 low-side output configurations and a maximum operating temperature of 85°C.
PackagePDIP
Current1mA
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Microchip MIC5801YN technical specifications.
General
| Package/Case | PDIP |
| Height | 4.7mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 30.73mm |
| Logic Function | Latch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Circuits | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Output Configuration | Low Side |
| Output Current | 500mA |
| Output Voltage | 50V |
| Package Quantity | 17 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Width | 9.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5801YN Datasheet
Download the complete datasheet for Microchip MIC5801YN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

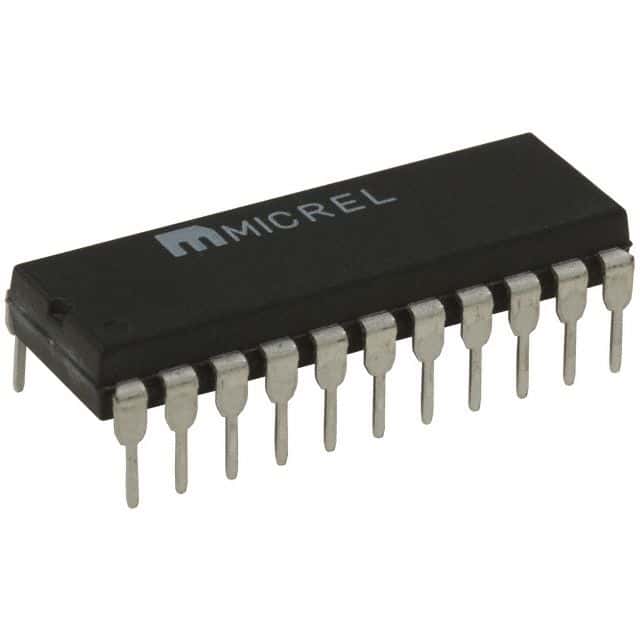

Product Images
