General purpose comparator IC, featuring a single channel with a 600ns response time and 5mV maximum input offset voltage. Operates with dual supply voltages from 1V to 15V, or single supply from 2V to 36V. Surface mountable in a SOT-23 package, this component offers a 20mA output current and 400uA output current per channel, with TTL output compatibility. It boasts a 1.2mA maximum supply current and a wide operating temperature range of -40°C to 85°C.
PackageSOT-23
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC6270YM5-TR technical specifications.
General
| Package/Case | SOT-23 |
| Dual Supply Voltage | 15V |
| Height | 1.1mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Length | 2.9mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.2mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Natural Thermal Resistance | 220°C/W |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Compatibility | CMOS |
| Output Current | 20mA |
| Output Current per Channel | 400uA |
| Output Type | TTL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 600ns |
| RoHS Compliant | Yes |
| Series | IttyBitty® |
| Supply Current | 900uA |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC6270YM5-TR Datasheet
Download the complete datasheet for Microchip MIC6270YM5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

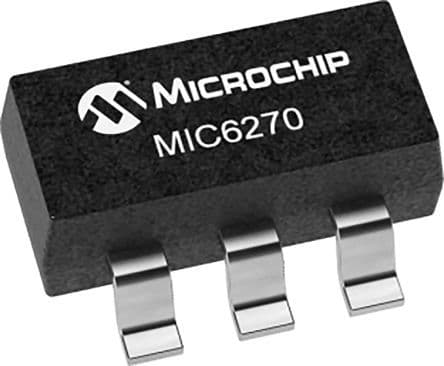

Product Images
