Technical Specifications
Microchip MIC803-26D4VM3-TR technical specifications.
General
| Package/Case | SOT-23-3 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 4.5uA |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 1.12s |
| RoHS Compliant | Yes |
| Supply Current | 18uA |
| Threshold Voltage | 2.63V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC803-26D4VM3-TR Datasheet
Download the complete datasheet for Microchip MIC803-26D4VM3-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

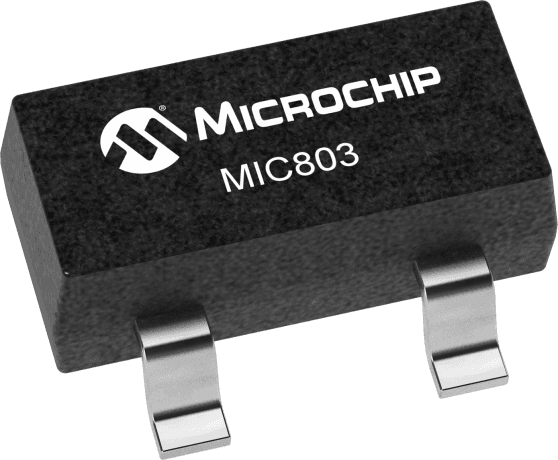

Product Images
